What Is Edge Protection Fencing?
Edge Protection Fencing, also known as a temporary edge protection barrier, construction edge protection fence or edge protection system, is used to create a protective barrier along exposed edges and elevated working areas.
Unlike standard temporary construction fencing, which mainly separates people from a worksite, edge protection fencing is intended for specific fall-prevention applications. The barrier and its fixing system must be suitable for the intended structure, site conditions and applicable safety requirements.
Common installation locations include:
- Open concrete floor slab edges in multi-storey buildings
- Roof edges during construction and maintenance
- Stairways, landings and mezzanines
- Openings and exposed edges around elevated platforms
- Steel structures and formwork areas
- Bridge decks and infrastructure construction zones
The exact panel configuration, post arrangement and fixing method depend on the application and the required protection system.
Edge Protection Fencing for Different Applications
1. Concrete Slab Edge Protection
During multi-storey building construction, open floor slab edges can create serious fall hazards while workers carry out reinforcement, formwork, concrete pouring and other building activities.
Edge protection fencing can be installed along exposed slab perimeters to establish a protective boundary during the relevant construction stages.
Depending on the structural arrangement, potential fixing options may include slab edge clamps, socket bases, brackets or other compatible mounting components.
Applications:
- High-rise residential buildings
- Commercial buildings and office towers
- Apartment developments
- Concrete frame construction
- Multi-storey car parks
2. Roof Edge Protection Fencing
Roof construction, roofing installation and maintenance work may expose workers to unprotected roof edges.
Roof edge protection barriers help establish a protective boundary around designated work areas. The mounting arrangement must suit the roof structure, surface condition and project requirements.
Where a roof membrane must remain intact, the project team should confirm whether a suitable non-penetrating or counterweighted system is required and technically appropriate.
Applications:
- Commercial and industrial rooftops
- Residential roof construction
- Warehouse roof installation
- Flat roof maintenance
- Rooftop mechanical equipment areas
3. Stairway and Landing Edge Protection
Open stairwells, unfinished stairways and elevated landings can present fall hazards during building construction.
Steel mesh barriers and compatible posts can be configured to protect exposed sides and designated openings, subject to the geometry of the structure and the applicable site safety requirements.
Applications:
- Building stairwells
- Concrete staircases
- Intermediate landings
- Open stairwell edges
- Commercial and residential construction
4. Steel Structure Edge Protection
Steel frame construction often involves elevated working areas before floors, cladding and permanent guardrails are completed.
Edge protection components may be mounted to suitable structural members using compatible beam clamps or brackets. The fixing method must be selected for the specific steel profile and installation conditions.
Applications:
- Structural steel buildings
- Industrial plants
- Steel frame warehouses
- Commercial building structures
- Elevated steel platforms
5. Formwork and Construction Platform Protection
During concrete construction, temporary formwork and working platforms may have exposed edges that require collective fall protection.
Depending on the platform structure, compatible posts, mesh barriers and fixing accessories can be incorporated into the temporary protection arrangement.
Applications:
- Concrete formwork operations
- Elevated construction platforms
- Building floor construction
- Temporary access platforms
- Industrial construction projects
6. Bridge and Infrastructure Edge Protection
Bridge decks, elevated walkways and other infrastructure structures may require temporary edge protection during construction, repair or maintenance.
The appropriate barrier system depends on the structure, exposure conditions, installation method and project-specific safety requirements.
Applications:
- Bridge construction
- Road infrastructure projects
- Railway infrastructure
- Elevated walkways
- Civil engineering and industrial projects
Edge Protection Fence Products and Components
CHEUNGG STEEL can discuss the supply of steel mesh barrier panels and related components according to the product configuration and project scope.

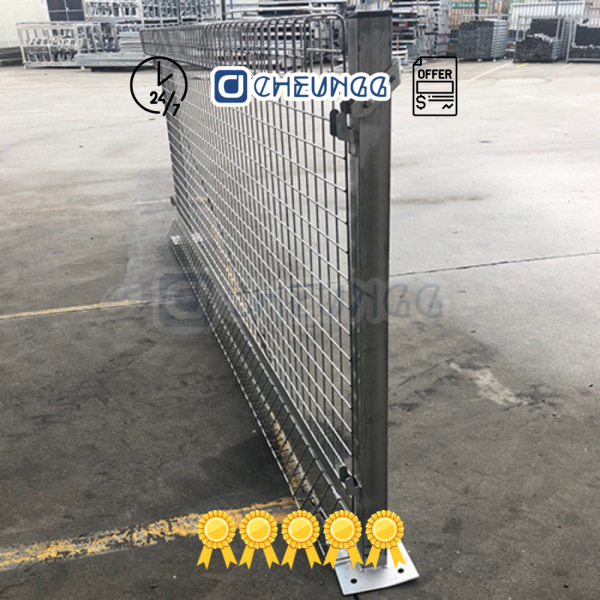

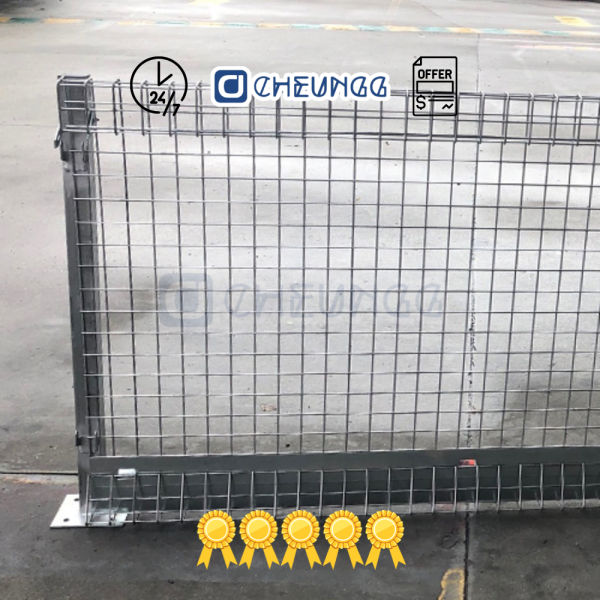

Steel Mesh Barrier Panels
Welded steel mesh panels provide a visible physical barrier and can be manufactured to specified dimensions, mesh openings, wire diameters and frame configurations.
Edge Protection Posts
Posts support the barrier panels and transfer loads to the compatible mounting system. Their dimensions, material thickness and spacing must be appropriate for the selected system.
Brackets and Fixing Components
Depending on the installation, the system may require slab clamps, beam clamps, socket bases, mounting brackets or other dedicated fixing components.
Toe Boards and Related Accessories
Where required by the project, toe boards and compatible accessories may be included to help reduce the risk of tools or materials falling from elevated working areas.
The availability and configuration of these components should be confirmed against the project specifications.
Materials and Surface Finishes
Edge protection fencing is commonly manufactured from steel components selected for the required strength, durability and site conditions.
Available manufacturing options may include:
- Galvanized Steel: A corrosion-resistant finish for suitable construction and outdoor applications.
- Powder-Coated Steel: A durable colored finish that can also improve product visibility.
- Customized Mesh Panels: Panel dimensions, wire diameters, mesh openings and frame details specified for the project.
- Customized Accessories: Posts, brackets, mounting components and other compatible parts, subject to the selected system.
Material grades, coating requirements and fabrication details should be confirmed before production.
Customized Edge Protection Fencing for Project Requirements
Different construction sites have different structural conditions. A barrier intended for a concrete slab may require a different fixing arrangement from one installed on a steel beam or roof.
CHEUNGG STEEL welcomes inquiries from contractors, distributors and project procurement teams seeking customized steel mesh barriers and edge protection fencing components.
Depending on the manufacturing scope, customization can cover:
- Panel height and width
- Wire diameter and mesh opening
- Frame dimensions and reinforcement
- Post dimensions and spacing
- Surface treatment and color
- Mounting brackets and fixing accessories
- Toe boards and related components
- Packaging and container loading arrangements
To help us prepare an accurate quotation, please provide your drawings, BOQ, required quantities, destination country and any applicable project specifications.
Important: Edge protection is safety-critical equipment. Product dimensions, fixing methods, system performance and applicable standards must be confirmed for the intended use. Please specify any required standard, such as EN 13374 or the relevant local requirements, when requesting a quotation. Compliance or certification should only be claimed where supported by valid product-specific documentation and testing.
Why Choose CHEUNGG STEEL for Edge Protection Fencing?
Factory-Direct Supply
As a manufacturer and supplier of fencing and metal mesh products, CHEUNGG STEEL offers direct communication on product specifications, production requirements and order arrangements.
Competitive Project Pricing
Factory-direct sourcing and production planning help support competitive purchasing costs for distributors, contractors and bulk buyers.
Customized Manufacturing
We can review customer-provided drawings, BOQs and specifications to determine the manufacturing scope and quotation requirements.
Consistent Quality Control
Production requirements and inspection arrangements can be confirmed before order placement to support consistent product quality across project quantities.
Bulk Order and Export Support
We support project-oriented supply planning, packaging coordination and export shipment arrangements for international customers.
Long-Term Supply Partnerships
We aim to build lasting relationships with distributors, contractors and procurement teams through reliable communication, stable supply and commercially practical solutions.
Who We Supply
CHEUNGG STEEL welcomes inquiries from:
- Construction contractors
- Scaffolding and formwork companies
- Building material distributors
- Construction safety equipment suppliers
- Infrastructure contractors
- Industrial project procurement teams
- Importers and wholesalers
- Project owners and purchasing departments
Whether you are sourcing a trial quantity or planning a larger project order, please contact our sales team to discuss your requirements.
Request a Quote for Edge Protection Fencing
Looking for an Edge Protection Fence Manufacturer or Supplier in China?
Send CHEUNGG STEEL your drawings, BOQ, specifications and required quantities. Our sales team will review the requested products and provide a quotation based on the confirmed manufacturing scope.
Contact CHEUNGG STEEL for Edge Protection Fencing, Steel Mesh Barriers and Customized Construction Fencing Products.
